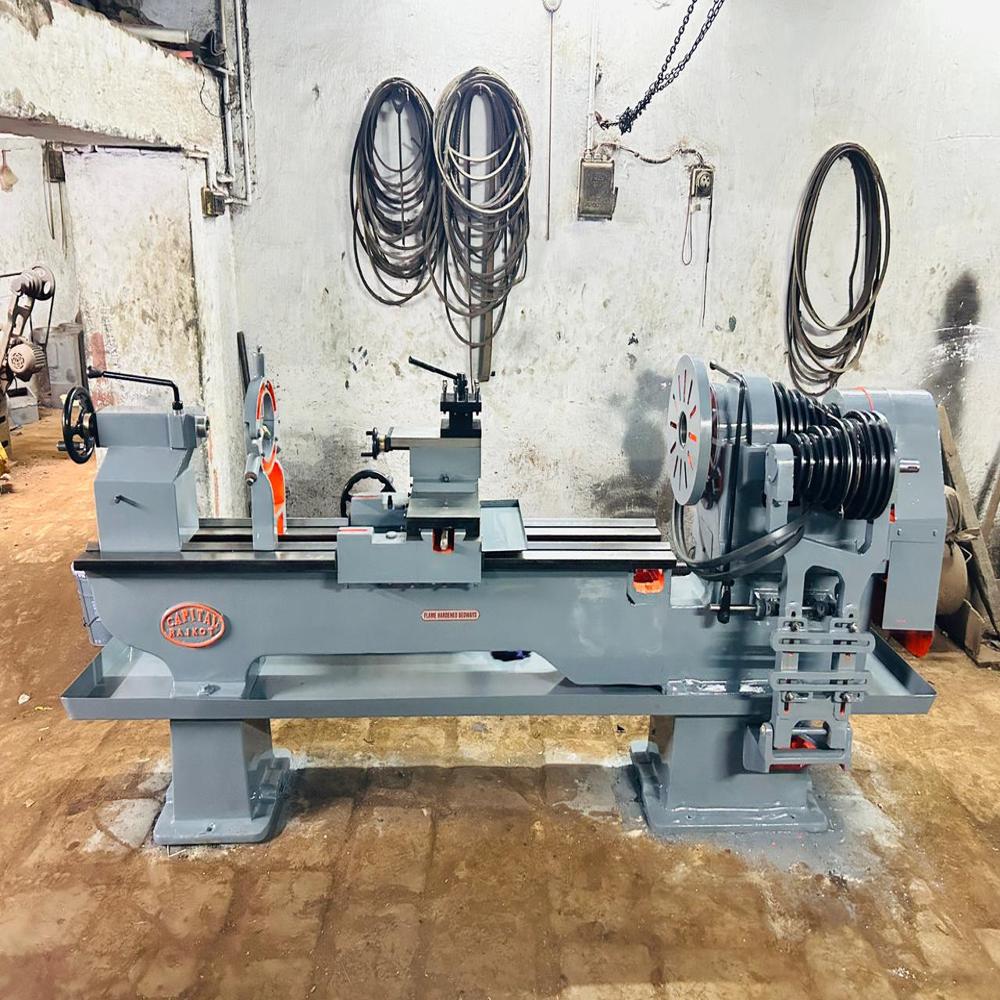

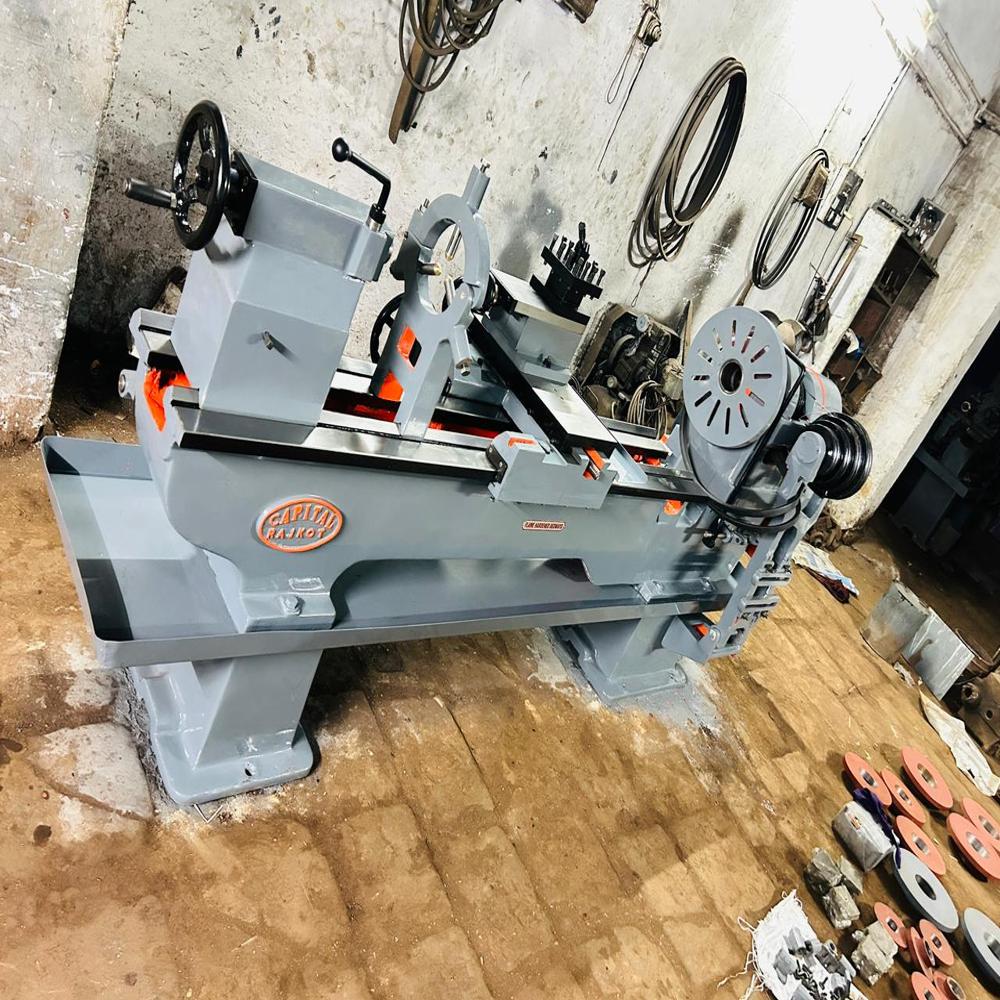

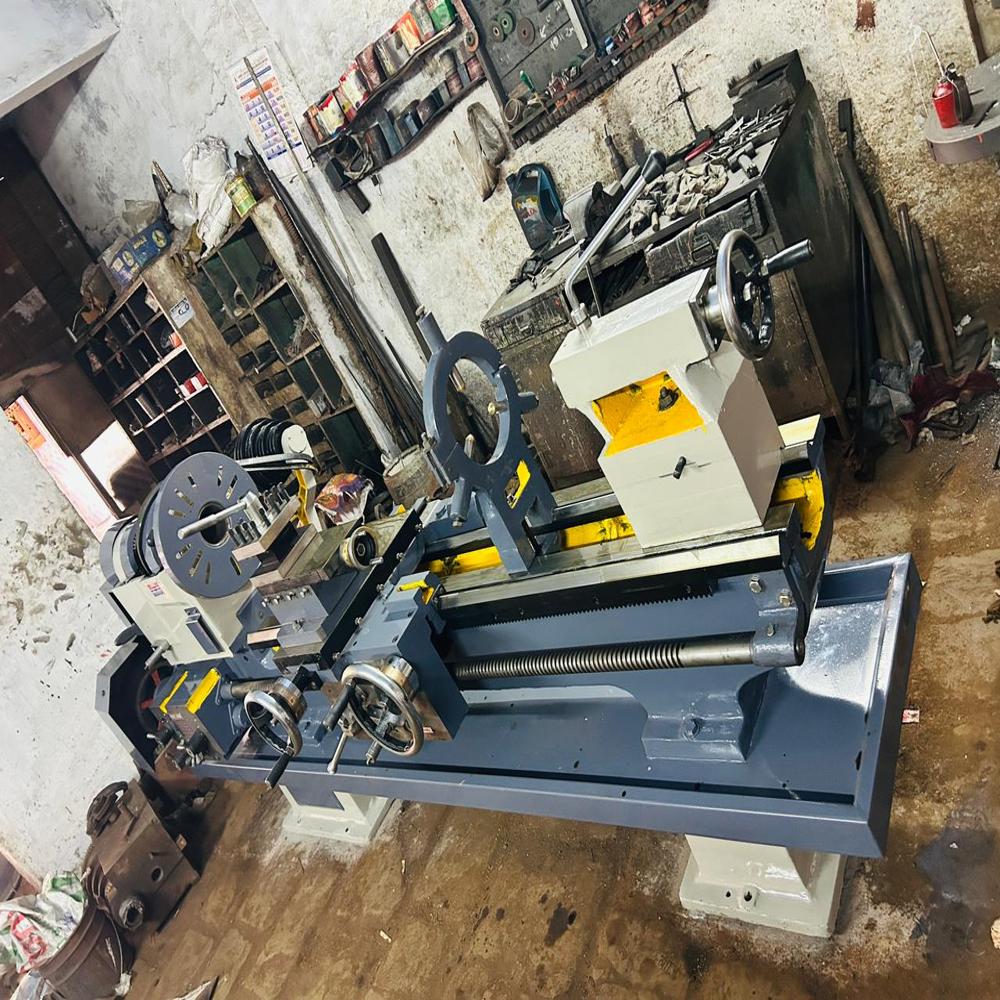

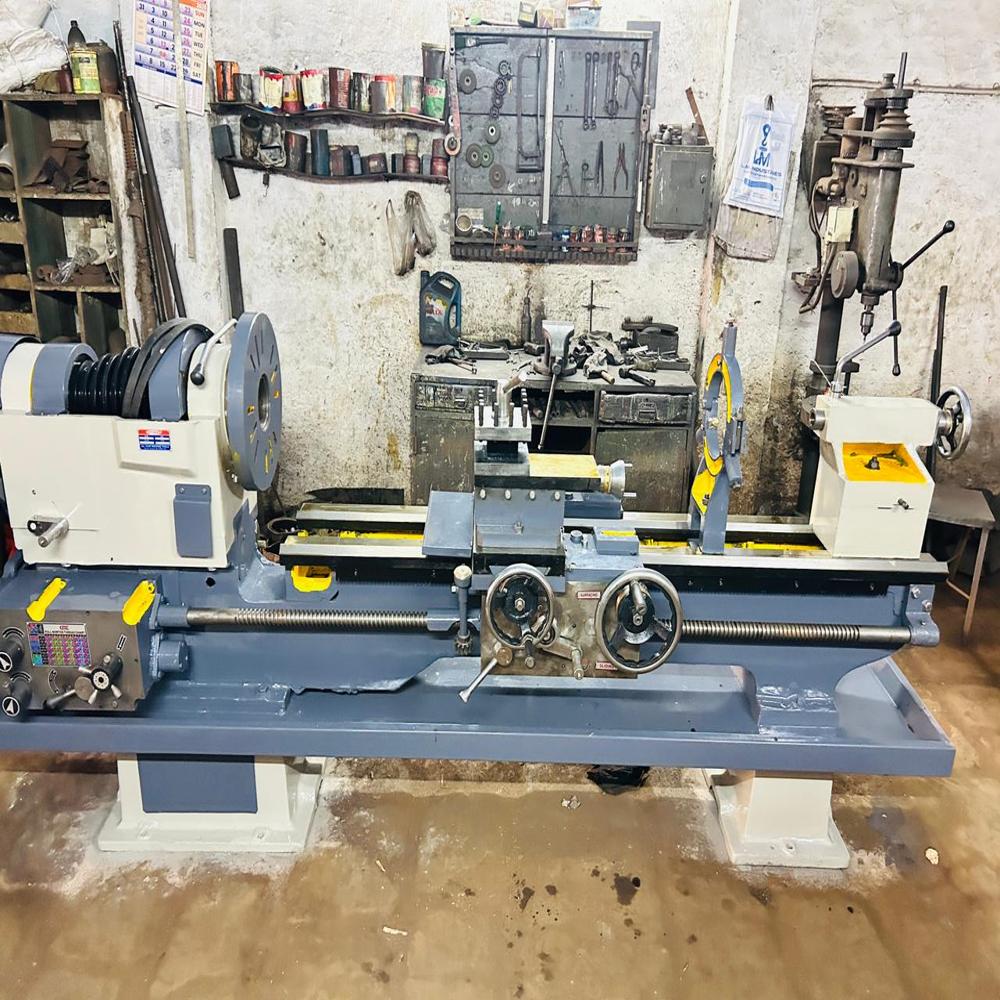

9 Feet Lethe Machine

Name: 9 Feet Lethe Machine
Brand: SHREE HARI AUTOMATION
Price: 270000.0 INR
Availability: InStock

Price 270000.0 INR/ Unit

Get a Price/Quote

MOQ : 5 Units

9 Feet Lethe Machine Specification

Product Type
Manual Lathe Machine

Material
Cast Iron

Cutting Thickness
Up to 10 mm

Cutting Speed
40-1600 RPM

CNC Or Not
No (Conventional)

Automatic Grade
Manual

Control System
Manual

Max. Swing Diameter
450 mm

Voltage
220-440 V

Weight (kg)
Approx. 1500 kg

Dimension (L*W*H)
Approx. 2700 mm (L)

Capacity
Heavy Duty

Feature
High Precision, Easy Operation, Sturdy Construction

Color
Green

Application
Metal Turning, Facing, Boring, Drilling, Threading

Thread Range
0.5-7 mm

Spindle Bore
40 mm

Lead Screw Diameter
35 mm

Bed Length
9 Feet (Approx. 2700 mm)

Tailstock Travel
140 mm

Number of Spindle Speeds
6-12 Steps (Varies by Model)

Surface Finish
Polished

Chuck Diameter
200 mm (3 Jaw Chuck)

Distance Between Centers
1370 mm

Power Consumption
2.2 kW

Phase
Three Phase

About 9 Feet Lethe Machine

A 9 Feet Lathe Machine is a heavy-duty industrial machine used for shaping, cutting, drilling, turning, and finishing metal or wooden workpieces with high precision. It is commonly used in engineering workshops, manufacturing units, fabrication industries, and repair centers.

Best Description

9 Feet Lathe Machine A robust and precision-engineered machine designed for heavy turning operations on long workpieces up to 9 feet in length. Built with a strong cast iron body, it delivers smooth performance, high accuracy, low vibration, and long service life. Suitable for threading, facing, knurling, boring, and drilling applications in industrial and workshop environments.

Key Features

Heavy-duty cast iron construction
9 feet bed length for large jobs
High precision spindle performance
Smooth gear and feed mechanism
Suitable for metal turning and threading
Low maintenance and durable design
Available in belt-driven or geared models

Common Applications

Shaft machining
Industrial fabrication
Automobile workshop jobs
Agricultural equipment repair
Engineering and tool room work

If you want, I can also provide:

a short marketing description
a technical specification format
an IndiaMART / website product listing description
or a Hindi version.

Superior Metalworking Capacity

Designed to handle heavy-duty industrial work, the 9 Feet Lathe Machine provides a substantial cutting thickness of up to 10 mm and accommodates large workpieces. Its stable construction and weight of approximately 1500 kg ensure minimal vibration and high accuracy in tasks such as facing, boring, and threading.

Manual Control with Precision Engineering

Featuring a manual control system, multiple spindle speeds, and a polished surface, this lathe offers operators maximum control over machining processes. The 35 mm lead screw and easy tailstock adjustment ensure smooth threading and finely detailed turning operations.

Reliable and Versatile Application

Applicable across metalworking industries, the machine supports voltages from 220 to 440 V, making it well-suited for varied power infrastructures. Its durable cast iron build ensures longevity, and the 3-jaw chuck with 200 mm diameter provides secure holding for diverse material shapes and sizes.

FAQ's of 9 Feet Lethe Machine:

Q: How does the 9 Feet Lathe Machine ensure high precision during operation?

A: The machine features a heavy-duty cast iron bed, a polished surface finish, and a robust lead screw mechanism, minimizing vibration and ensuring tight tolerances in metal turning, facing, and threading.

Q: What types of metals and processes is this lathe suitable for?

A: It is designed primarily for various metalworking tasks including metal turning, facing, boring, drilling, and threading, supporting materials like cast iron and steel.

Q: When should you use multiple spindle speeds and how are they adjusted?

A: Multiple spindle speeds (6-12 steps depending on model) allow operators to match cutting speed to the material and process required. Adjustments are made manually using the control levers on the lathe.

Q: Where should the 9 Feet Lathe Machine be installed for optimal performance?

A: Install the machine in an industrial workshop with a solid, level floor and access to three-phase power (220-440 V) to ensure stability and efficient operation.

Q: What is the benefit of having a 3-jaw chuck with a 200 mm diameter?

A: A 3-jaw chuck provides a secure grip on round or hexagonal workpieces, with the 200 mm diameter accommodating larger materials, enhancing safety and versatility during turning and machining.

Q: How does the tailstock travel and lead screw diameter influence performance?

A: The 140 mm tailstock travel enables precise longitudinal adjustment for drilling and supporting long workpieces, while a 35 mm lead screw ensures reliable power transmission for accurate threading results.

Q: What maintenance processes should be followed for long-term use?

A: Regularly lubricate moving parts, check spindle alignment, ensure proper electrical connections, and clean swarf from surfaces to maintain smooth operation and extend the machine's service life.
